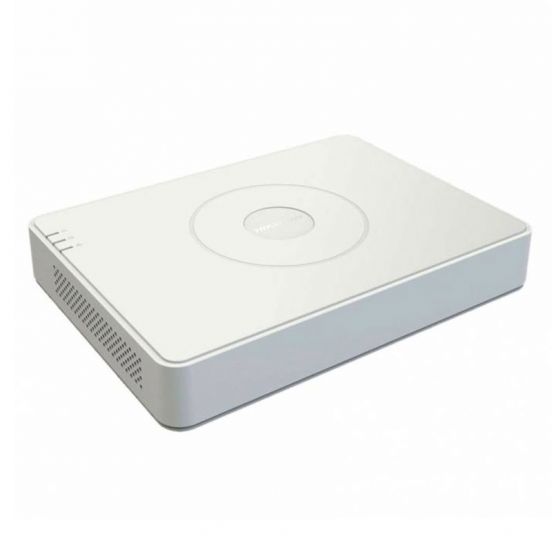

Hikvision DVR Digital Video Recorder DS-7116HGHI-K1
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For standard definition stream access: WD1/4CIF/VGA/CIF
Frame Rate:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For standard definition stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 4 Mbps
Dual-Stream: Support
Audio Bitrate: 64 Kbps
Capacity: Up to 10 TB capacity for each disk
USB Interface: 2 × USB 2.0
| Additions | Video And Audio :
IP Video Input
: 2-ch (up to 18-ch) - Up to 5 MP resolution - Support H.265+/H.265/H.264+/H.264 IP cameras .
Analog Video Input: 16-ch - BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
AHD Input
: 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
: 1080p25, 1080p30, 720p25, 720p30
CVBS Input
: PAL/NTSC
HDMI Output
: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
: HDMI/VGA simultaneous output Audio Input
: 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio
: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback
: 16-ch |
|---|
